Titanium Wire

Titanium Wire

Product Details:

X

Product Description

Made of pure titanium, the Titanium Wire is notable  for its 0.2 mm to 3.0 mm diameter. Manufactured as per ASTM standard, this metal wire is used in welding work, chemical processioning and electrolysis work. We are offering this wire in Gr1, Gr2, Gr3, Gr5, Gr7, Gr9 and G12 grades. As a prestigious  manufacturer and exporter, we are offering excellent quality Titanium Wire which is appreciated for it high tensile strength, rust proof design, long functional life, standard quality and cost effectiveness.

We provide Northwest Institute For Non-ferrous & Metal Research Test Report OR Bao Ti Center Physical and Chemical Test Report

Applications:

  • Aerospace
  • Industrial, chemical, electrolysis
  • Medical
  • Medical materials
  • Spring
  • Welding
  • Welding materials

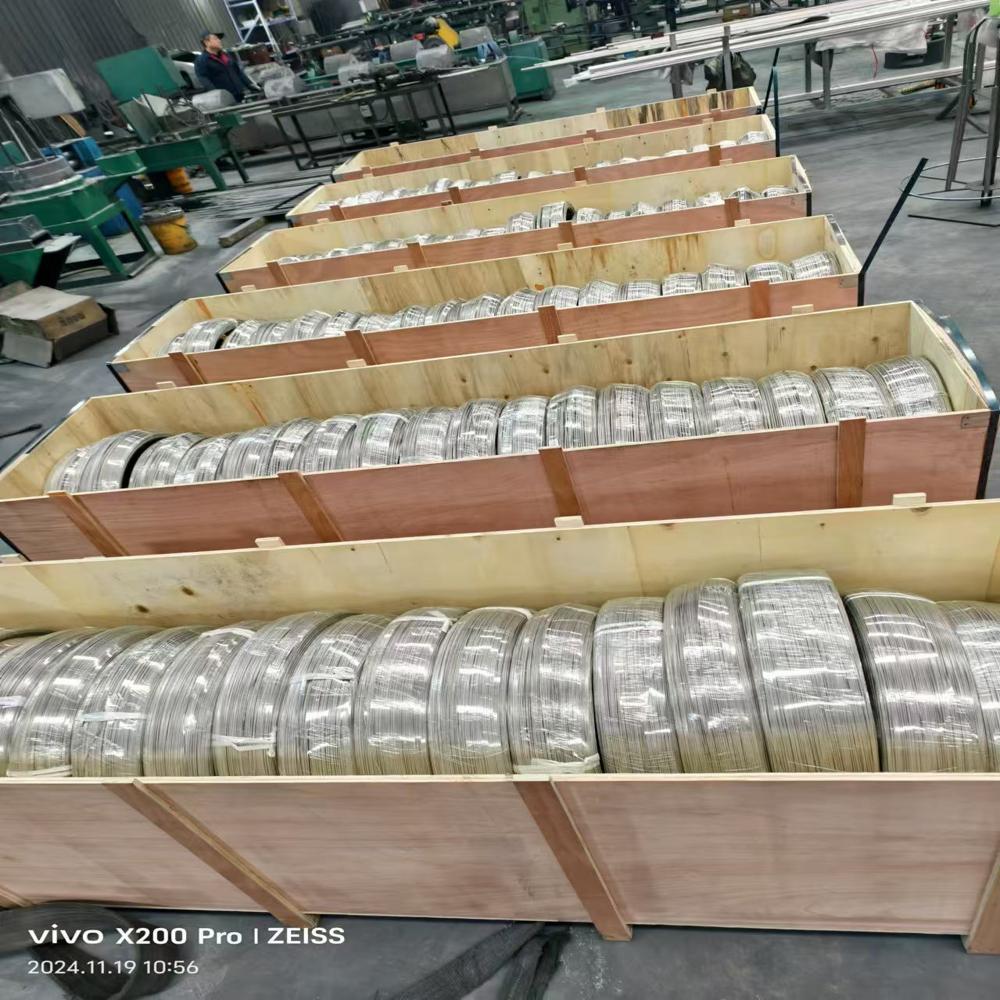

Packaging Details:

  • Initial packing is done with moisture-proof paper
  • Secondary packing is done with kraft paper
  • At third level, foam plastics are used in every side of plywood case
  • Lastly, plywood cases are used for packaging

Transportation:

  • DHL, EMS, Fedex, TNT, UPS, and others are used for transportation
  • By air transportation, goods are transported to Beijing or Shanghai air port.



Technical Specification :

  • Standard: ASTM B348,ASTM F136
  • Grade:Gr1, Gr2, Gr3, Gr5, Gr7, Gr9, Gr12 ect.
  • Dia:0.2-3.0mm
  • MPa:280-440
  • Straight wire or wire in coil

Chemical composition and Physical properties

Welding Products List :

Chemical Specification

Mechanical Property

UNS No.

ASTM B 348

C

O

N

H

I

AI

V

Tensile Strength

%EI.

R50100

GR1

0.03

0.03-0.10

0.012

0.005

0.08



180

37

R50120

GR2

0.03

0.08-0.16

0.015

0.008

0.12



240

28

R50125

GR3

0.03

0.13-0.20

0.02

0.008

0.16



340

26

R50130

GR4

0.03

0.18-0.32

0.025

0.008

0.25



550

23

R56400

GR5

0.03

0.12-0.20

0.030

0.015

0.22

5.5-6.7

3.5-4.5

1000

18

R52401

GR7

0.03

0.08-0.16

0.015

0.008

0.12



340


R56320

GR9

0.03

0.08-0.16

0.020

0.008

0.25



615

17

R56408

GR5-ELI

0.03

0.03-0.11

0.012

0.005

0.20

5.5-6.7

3.5-4.5

1000

18


Titanium Wires Dimension Tolerance :


Diameter

0.1-0.3 mm

0.3-0.8 mm

0.8-2.0 mm

2.0-6.0 mm

Tolerance

+/- 0.025

+/-0.04

+/-0.05

+/-0.10

Length

200-500 mm

500-1000 mm

1000-2000 mm

&2000 mm

Tolerance

+/-1.0

+/-1.5

+/-2.0

+/-2.5

  • Wire Further Processing
  • Cut to length Wire
  • Flat Wire
  • Square and Shaped Wire
  • Rewinding and spooling
  • Polishing and cleaning

Material Test Certificate supplied :

Mechanical Property of Titanium Wire in Room Temperature

Grade

Tensile Strength,Mpa(>)

Elongation,%(>)

Grade 1

370

18

Grade 2

440

15

Grade 3

540

15

Grade 5

895

10
