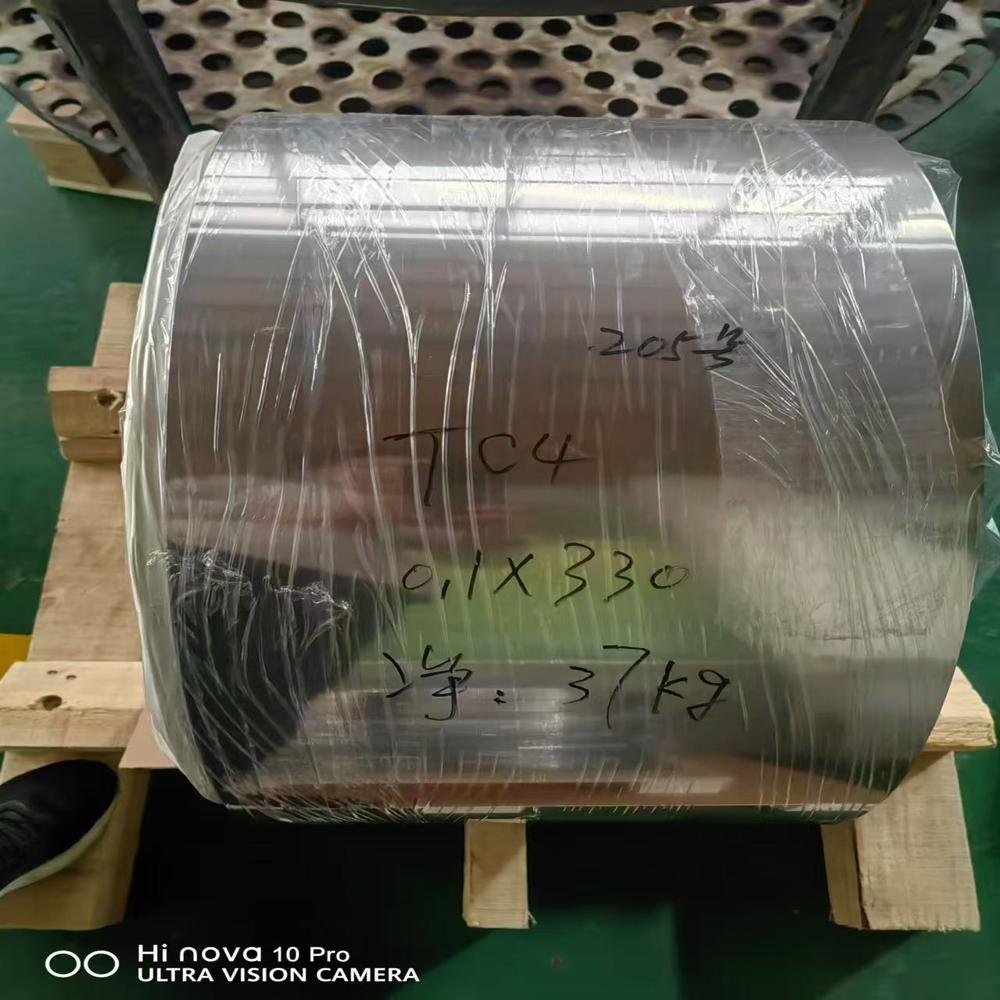

Titanium Foil

Titanium Foil

Product Details:

X

Product Description

With the constant support of our experienced professionals, we are able to manufacture, wholesale, distribute, supply and export an extensive range of Titanium Foil. Due to the ergonomic design, this foil has been used for the preparation of sound film, stamping parts and medical component like pacemaker. The available range is produced using modern age equipment and extensive rolling experience along with high grade of raw material. Our deft professionals performed a series of quality parameters on Titanium Foil to check finishing and strength standards.

Features:

  • Uniform size
  • Free from abrasion
  • Rust proof

Specification :

  • Standard : ASTM B265, GB/T3622-2007, AMS 4911
  • Grade : Gr1,Gr2,Gr5,Gr7,Gr9,
  • Size : thickness X width X length
  • Thickness : 0.025mm-0.7mm
  • Width :
    • 0.025mm-0.15mm X 180mm X L
    • 0.2mm-0.3mm X 300mm X L
    • 0.3mm-0.7mm X 480mm X L
    • 1.0mm-100mm X 1000mm X 2000mm
  • Length : by request
  • Form : single strip, coiled oron spool
  • Delivery : 5-20 days
  • Shipment : door to door by DHL, TNT, UPS, FEDEX / by air / by sea
  • Package : plywood boxes suitable for export and transport

Chemical requirements :


O(max)

H(max)

Fe(max)

C(max)

N(max)

Al

V

gr1

0.18

0.05

0.2

0.08

0.03



gr2

0.25

0.015

0.30

0.08

0.03



gr5

0.20

0.015

0.40

0.08

0.05

5.5-6.75

3.5-4.5

Mechanical Properties :

Grade

Tensile Strength, min

Yield Strength (0.2% Offset

Elongation in 2 in. Or 50mm, min, %

Bend Test Mandrel Diameter

ksi

MPa

Min

Max

Under 0.070 in. (1.8 mm) in thickness

0.070 to 0.187 in. (1.8 to 4.75mm) in Thickness

ksi

MPa

ksi

MPa

1

35

240

25

170

45

310

24

3T

4T

2

50

345

40

275

65

450

20

4T

5T

3

65

450

55

380

80

550

18

4T

5T

4

80

550

70

483

95

655

15

5T

6T
